Custom Multichannel Si Brain Probe Mfg service: Neuronode10

On a custom-project basis, we designs and manufacutres various types of basic and popular multichannel Si brain probe (named Neuronode10 series).

All and any probe parameters, such as dimension, length, thickness, electrode site location, shape and number, shank number, etc. are all customizale to meet specific experiment requirements.



Specification :

Probe shaft material : Silicon (Si)

Probe length : 5, 10, 20, 33 mm or Custom

Probe width : 110 - 350 um

Probe thickness : 40 um or thicker

Probe shaft back side : Round shape

Probe shaft shape : Straight tapering or Tiered tapering

Probe tip shape : Sharp-pointed (like Yacht-Bow)

Shank number : 1, 4, 8 or Custom

Shank Space : 100, 200, 500 um or Custom

Electrode site material : Ir (Pt or Au optional)

Site number : 4, 8, 16, 32, 64 , 256 ch or Custom

Site diameter : 10, 15, 20, 30 um or Custom

Site space : 7 um or wider

Site layout : Laminar, Tetrode, 2-rows, 3-rows, Edgeways, or Custom

Package : PCB or Implantable (Major system vendors compatible) or Custom



Availablity :

In Mass-Production for OEM partners now.

In Custom-Production for Researchers now.

Our business model is;

- Probe Mfg service (OEM) for Probe vendors or System vendors, and

- Probe custom mfg service for researchers.

Please contact us for product details, price, stocks.

Download : Neuronode10 catalog

More info: info@t-microtec.com



Custom Product examples :

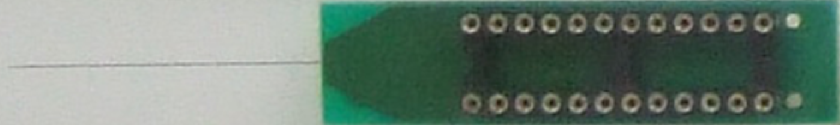

10 mm / 1 shank / 16 ch / Acute

33 mm / 4 shank / 32 ch / Acute

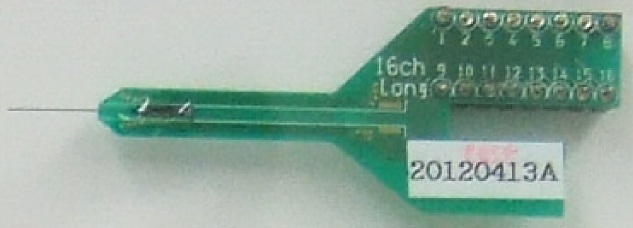

5 mm / 1 shank / 16 ch / Custom Acute
